KUNZ UBB

KUNZ UBB - Universal BeadBreaker

Key Tasks

Breaking of aircraft tire beads on bias aircraft tires for wheel half diameters from 406 mm (16 in) to 762 mm (30 in)
Safe and damage-free tire removal without harming the wheel or bearing cups
Convenient operation via foot pedals, freeing both hands during operation
No additional adapters required – universal for all supported tire sizes

OVERVIEW

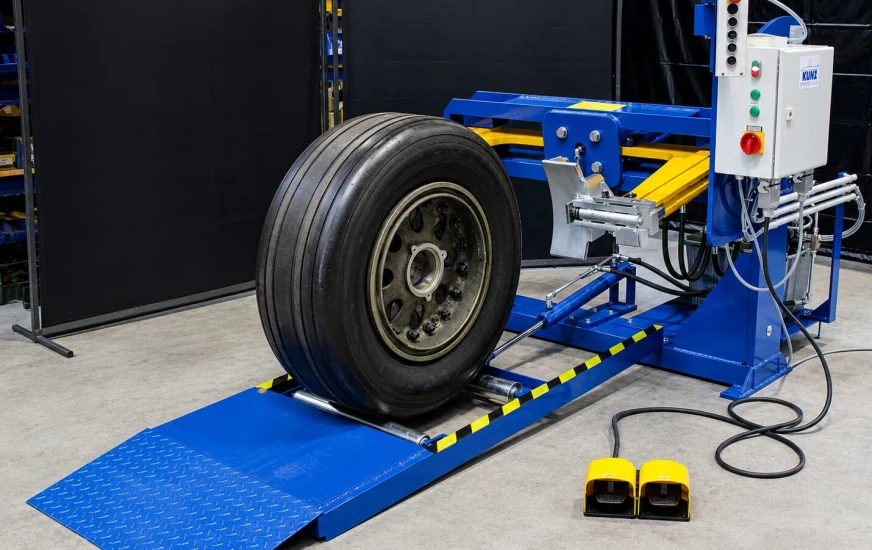

The KUNZ UBB Universal BeadBreaker has been specifically designed for bias tires of large aircraft. Its electro-hydraulic bead breaking action is engineered for damage-free separation of the tire bead from the rim, using controlled press force rather than harsh impact.

The UBB features an integrated ramp for easier wheel positioning as well as a wheel trolley with rollers for manual handling. Height adjustment of the press tools is performed via push buttons for ease of use. The adjustable tooling accepts a wide range of civil aircraft wheel sizes without requiring any additional adapters, making the UBB a highly versatile solution for high-throughput MRO shop environments.

Main Benefits

Designed for large bias tires with wheel half diameters from 406 mm (16 in) to 762 mm (30 in)
Electro-hydraulic, controlled press action – gentle and damage-free bead breaking
No additional adapters required – universal geometry for all supported wheel sizes
Integrated ramp and wheel trolley with rollers for ergonomic wheel positioning
Foot pedal operation frees both hands for safer and more efficient handling
Built for high throughput in MRO shops – faster and more repeatable than manual methods
Reduced risk of wheel and tire damage through controlled, low-pressure operation

Simple and Efficient Tire Removal

The KUNZ UBB is designed to make bead breaking as simple and efficient as possible. Thanks to its well engineered design, the unit enables quick and controlled tire removal while requiring minimal physical effort from the operator.

Its intuitive operation ensures a smooth workflow and significantly reduce the risk of damage to both wheel and tire. This not only increases process reliability but also shortens overall handling time.

With the KUNZ UBB, operators benefit from a dependable solution for straightforward bead breaking, combining efficiency and ergonomics.

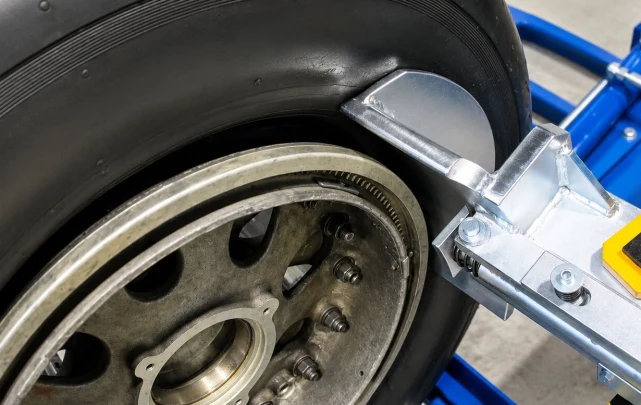

KUNZ UBB Press Tools | Tire Bead Breaking

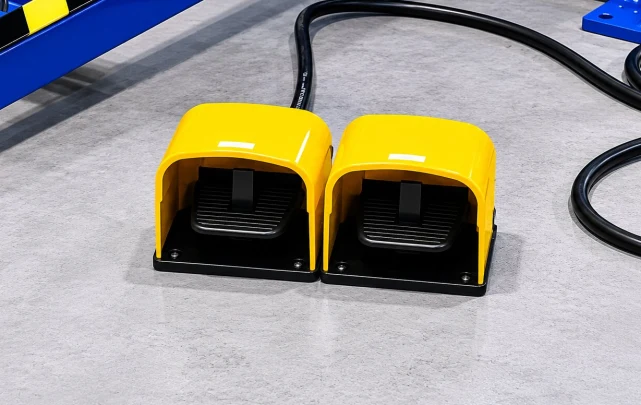

KUNZ UBB Foot Pedals | Tire Bead Breaking

Foot Pedal Operation for Maximum Hands-Free Control

The KUNZ UBB is operated via foot pedals, allowing the operator to use both hands freely at all times.
This design choice provides maximum flexibility to guide the wheel precisely during the bead breaking process, resulting in a faster, safer and more consistent outcome on every cycle.

Electronic Drive Option:

The KUNZ UBB is also available as an electronically driven version, further simplifying the process by eliminating the need for the operator to manually rotate the wheel during bead breaking.

Shared Power Pack Option (SBB):

The KUNZ UBB is capable of sharing its power pack together with the KUNZ SBB. This way you will only need one power pack for both of these units which reduces costs of investment.
Operation is only possible on either one unit at the same time.

Product Information

Dimensions

Dimensions (L x W x H) in mm (in)

3.000 (118) x 1.860 (73) x 1.600 (63)

Weight in kg (lb)

800 (1.760)

Max. tire diameter in mm (in)

1702 (67)

Max. rim diameter in mm (in)

762 (30)

Min. tire diameter in mm (in)

660 (26)

Min. rim diameter in mm (in)

330 (13)

Max. tire width in mm (in)

711 (28)

Max. operating pressure in bar (psi)

160 (2.276)

Hydraulic oil tank volume in l

Electric power requirements

The KUNZ UBB comes with a factury set power requirement of 50/60 Hz, 400V 3-phases, 16 ampere fuse However, we will always need to know your local power requirements in order to check for compatability. In general, your local power requirements will always be available with KUNZ machines in return of extra costs.

Value

UBB - Universal Bead Breake

Electro-hydraulic bead breaking process designed for damage free separation of tire beads
Adjustable tooling to accept a wide range of civil aircraft wheel sizes
Safety interlocks and controlled press to prevent rim or tire damage
Built for high throughput in MRO shops (faster and more repeatable than other methods)
Easy and precise height adjustment of press tools via positioning lever
Equipped with a ramp and trolley for easier placement of the wheel
Increased Health and Safety due to absence of loud breaking noise
Does not require any additional adapters

eUBB - Universal Bead Breaker

Provides all of the aforementioned benefits already included with the KUNZ UBB
Comes with electronic rollers to automatically rotate the wheel during operation

Part Numbers

KUNZ UBB - Universal Bead Breaker: 110.0000
KUNZ eUBB - Universal Bead Breaker: 110.9000
