KUNZ DUBB NGtronic
KUNZ DUBB

KUNZ DUBB - Dynamic Universal BeadBreaker

Key Tasks

Breaking of aircraft tire beads on modern radial and bias aircraft tires (ERJ 190, A320, A330, A340, A350, A380, B737, B787, B777, B747 and others)
Safe and damage-free tire removal without harming the wheel or bearing cups
Convenient operation via push buttons or fully automatic mode (NGtronic® AUTO)
Compatible with new generation radial tire technologies: Michelin NZG, Bridgestone RRR

Overview

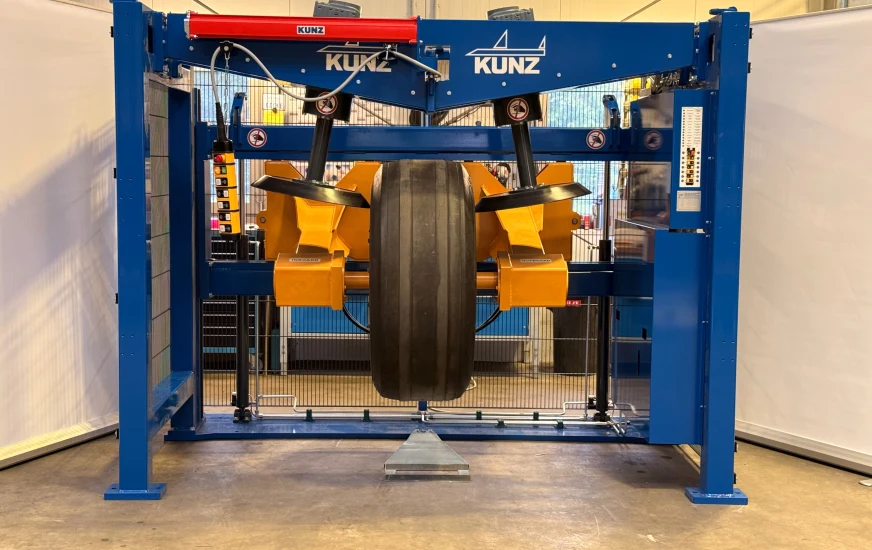

The KUNZ DUBB Dynamic Universal BeadBreaker has been specifically designed for the latest generation of radial tires, such as Michelin NZG and Bridgestone RRR tires for aircraft including the A320, A350, B737, B787, B777, B747 and ERJ 190, as well as all conventional bias aircraft tires.

The driven press tools rotate the wheel while simultaneously breaking the bead by gently moving the tire sidewall inwards. Subsequently, there is no damage to the bearing cups or any other part of the wheel and tire throughout the entire process.

Main Benefits

Compatible with new generation radial tire technologies (Michelin NZG, Bridgestone RRR) and all bias tires
Gentle and damage-free bead breaking process – no damage to bearing cups or heat shields
Significantly reduced noise level – no loud impact or breaking noise
No additional adapters required – universal for all supported tire sizes
Reduced risk of operator injuries thanks to safe operation via control panel
Fully automated NGtronic® AUTO version eliminates human error and enables parallel tasks
Small footprint – ideal for space-efficient MRO shop layouts
Compatible with KUNZ Wheel & Brake Shop Software for full process traceability

Safe Tire Removal – Operator Safety by Design

At KUNZ, manufacturing the safest and most reliable equipment on the market is our core commitment. With the KUNZ DUBB, operator safety is the top priority throughout the entire bead breaking process. Once the wheel has been positioned, the operator steps back and controls the unit via the control panel, ensuring a safe operating distance at all times and minimizing the risk of injury.

The bead breaking process is carried out without loud impact or breaking noise, significantly reducing noise exposure and supporting compliance with modern health and safety standards in the workshop.

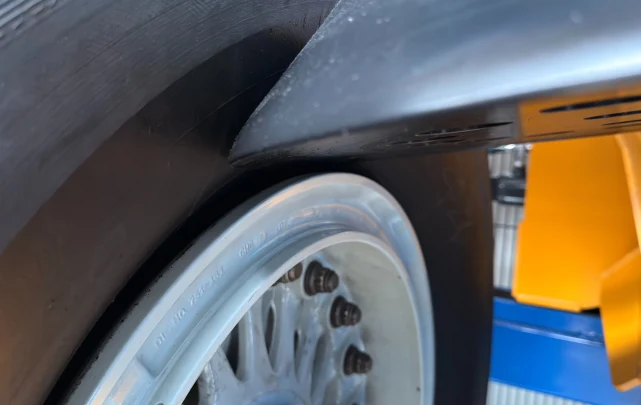

KUNZ DUBB Press Disks | Tire Bead Breaking

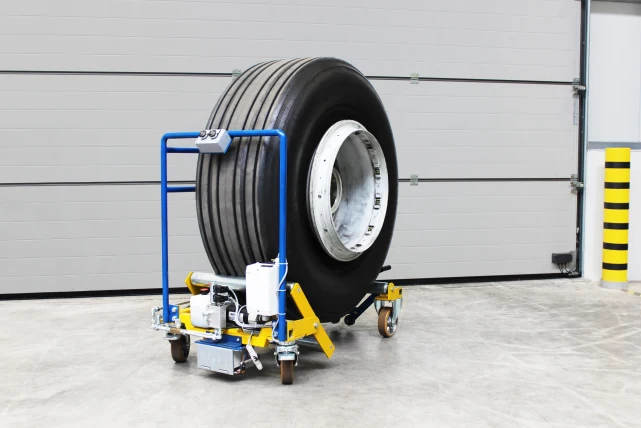

KUNZ LogMove with KUNZ DUBB | Tire Bead Breaking | Wheel & Brake Shop Logistics

Seamless Workflow Integration with KUNZ LogMove

The KUNZ DUBB is designed to work in combination with the KUNZ LogMove, enabling efficient movement of wheel assemblies between the assembly station and the test system without manual lifting or risk of tipping.

This integration reduces handling time, improves workshop safety and supports a smooth, continuous workflow from assembly through testing to return to service.

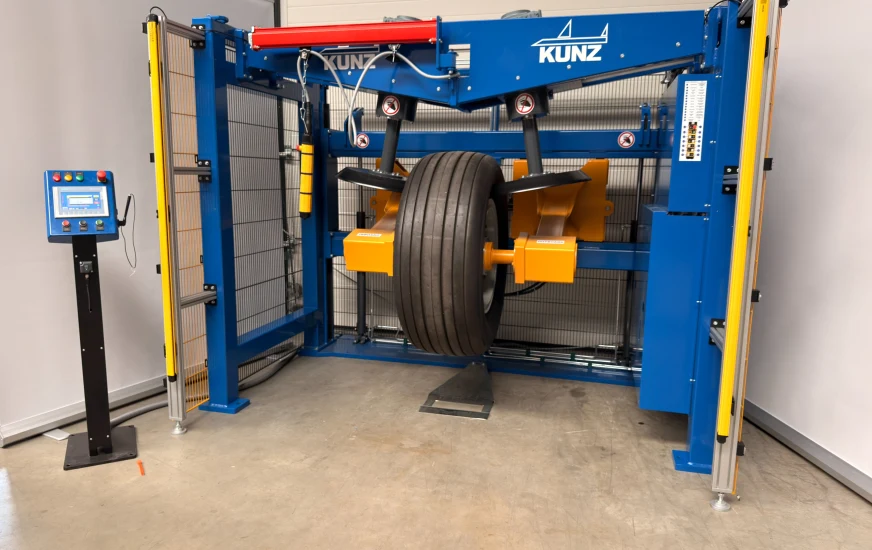

DUBB NGtronic® AUTO – Fully Automated Bead Breaking:

The KUNZ DUBB NGtronic® AUTO delivers maximum convenience, efficiency and full process traceability. By eliminating human factors during bead breaking, the system ensures consistent, error-free operation, prevents wheel damage and significantly reduces the risk of operator injury. Safety light barriers protect personnel during automatic operation. Work orders can be retrieved via barcode scanner or RFID card. Remote maintenance support is available for fast technical assistance and software updates.

Shared Power Pack Option:

The KUNZ DUBB is also capable of sharing its power pack together with the KUNZ SBB. This way you will only need one power pack for both of these units which reduces costs of investment.
Operation is only possible on either one unit at the same time.

Product Information

Dimensions

Dimensions (L x W x H) in mm (in)

2.551 (101) x 2.812 (111) x 2.230 (88)

Weight approx. In kg (lb)

2.600 (5.732)

Max. tire diameter in mm (in)

1.702 (67)

Max. rim diameter in mm (in)

762 (30)

Min. tire diameter in mm (in)

534 (21)

Min. rim diameter in mm (in)

330 (13)

Max. tire width in mm (in)

711 (28)

Max. tire weight in kg (lb)

250 (551)

Hydraulic oil tank volume in L

Electric power requirements

The KUNZ DUBB comes with a factury set power requirement of 50/60 Hz, 400V 3-phases, 16 ampere fuse However, we will always need to know your local power requirements in order to check for compatability. In general, your local power requirements will always be available with KUNZ machines in return of extra costs.

DUBB - Dynamic Universal BeadBreaker

Performs bead breaking of all varieties of aircarft tires larger in diameter or equal to 534mm (21in), specifically new generation radial tires and old generation bias tires
Works with the KUNZ Wheel & Brake Shop Software
Does not require any additional adapters
Increased Health and Safety due to absence of loud breaking noise
Optimised retread capabilities of tires as dynamic bead breaking provides the gentlest treatment of the
tire's sidewalls
Universal centering cones to clamp all KUNZ DUBB compatible wheels are included in the scope of supply
Bead Breaking is performed within minutes

DUBB NGtronic® AUTO - Dynamic Universal Bead Breaker

Provides all of the aforementioned benefits already included with the KUNZ DUBB
Further improves on Health and Safety by implementing a safety light barrier infront of the bead breaking area which will automatically shut down operation if crossed
Automatic programs for each part number can be selected by scanning work orders with bar codes or RFID cards
The automatic bead breaking does not require any supervision at any point of the process

Part Numbers

KUNZ DUBB - Dynamic Universal BeadBreaker: 111.2100
KUNZ DUBB NGtronic® AUTO - Dynamic Universal BeadBreaker: 111.2300

Product Updates

04/2025: The KUNZ DUBB has received a general redseign which further improves the footprint
of the machine and saves on shipping costs.
The Overall functionality of the machine remains the same.
