KUNZ BTS NGtronic-C

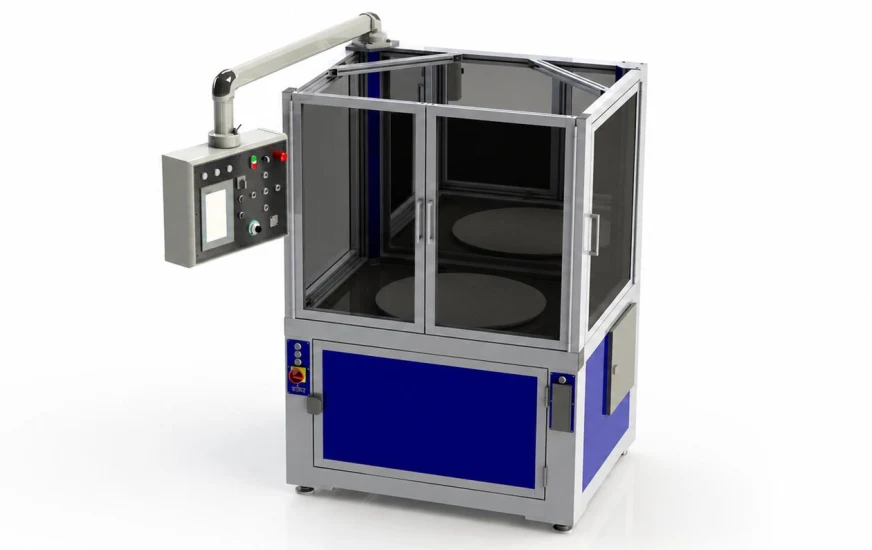

KUNZ BTS NGtronic-T

KUNZ BTS NGtronic (-T / -C) - Brake Test Stand

Key Tasks

Comprehensive and CMM-compliant hydraulic testing of aircraft brake assemblies
Step-by-step operator guidance via StepMatic® function – up to 60 brake part numbers storable
Small footprint with integrated turntable (-T) or conveyor belt integration (-C)
Maximum operator safety via interlocked doors with electrical safety switches

Overview

The KUNZ BTS NGtronic® is a state-of-the-art brake testing system designed for precise, reliable and efficient maintenance of aircraft braking systems. It enables comprehensive hydraulic testing of brake assemblies to ensure safety and optimal performance, with intuitive operation, high-precision measurement capabilities and a compact footprint.

The NGtronic® features a protected test cabin against hydraulic oil and Skydrol spray, an integrated turntable and mirror on the back of the cabin for 360° brake access, and electrical safety interlocks on all doors for maximum operator protection. It is available in two variants: the NGtronic -T with an overhead crane for brake loading, and the NGtronic -C for integration into existing conveyor belt systems.

With a 9-inch touchscreen, digital pressure gauges (0–500 psi and 0–5,000 psi), accuracy of 0.125% BFSL and system pressure tolerance of max. 2%, the BTS NGtronic® delivers the precision required for all brake CMM testing requirements.

Main Benefits

Comprehensive CMM-compliant brake testing with 100% conformity to maintenance manuals
High accuracy: digital pressure transducers at 0.125% BFSL of full scale
Intuitive 9-inch touchscreen control for easy programme selection and operation
StepMatic® function stores up to 60 brake part numbers for fast, repeatable testing
Small footprint – ideal for space-constrained MRO environments
Integrated turntable for 360° brake access during testing
All doors electrically interlocked for maximum operator safety
Test results printable as report or exportable to Excel

The StepMatic® Function – Guided Testing, Every Time

The unique StepMatic® function saves valuable time during every testing procedure. It allows the operator to programme test sequences – including pressure settings, cycle test parameters and time intervals – into the machine in accordance with the CMM of the specific brake type.

The BTS NGtronic® then executes the programme step by step, with the operator simply confirming and starting each step at the press of a button. This significantly simplifies and streamlines the entire testing process.

The StepMatic® function stores up to 60 different brake part numbers, enabling repeated tests to be performed quickly and reliably.

KUNZ BTS NGtronic-C | brake hydraulic testing

Two Concepts. One Performance Standard

The BTS NGtronic® comes in two distinct variants to match different workshop workflows:

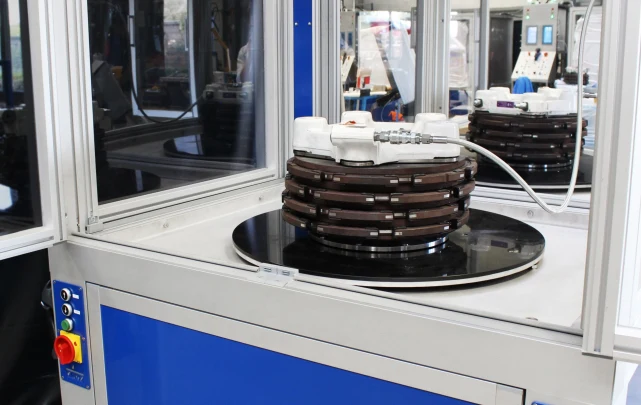

The NGtronic -T features an integrated turntable onto which the brake is loaded using an overhead crane. The turntable provides 360° access to the brake during testing, and the mirror on the back of the cabin ensures full visual coverage.

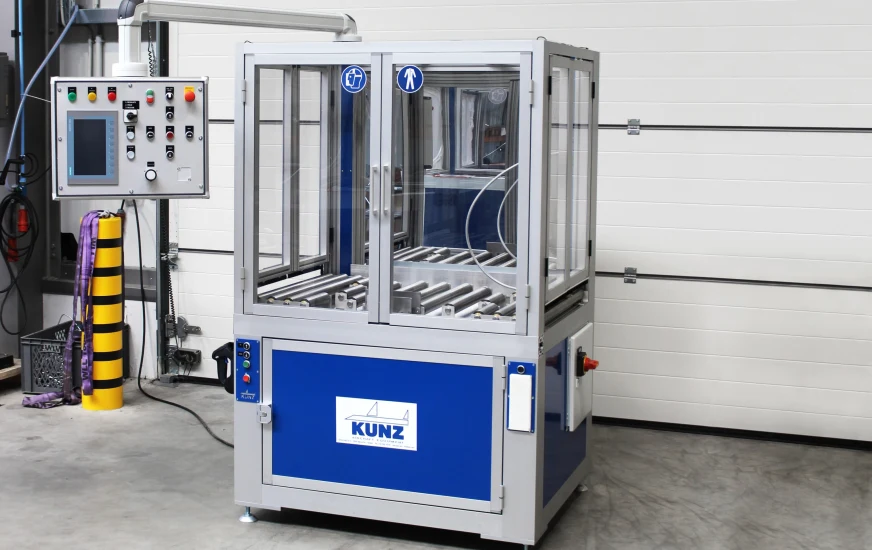

The NGtronic -C is designed for integration into existing conveyor belt systems, enabling the brake to be moved directly into the test cabin as part of a continuous production flow – significantly boosting throughput in high-volume environments.

Whichever variant is chosen, the KUNZ BTS NGtronic® delivers the same high standard of precision, safety and CMM compliance.

Fully Automated Version Available:

The KUNZ BTS NGtronic® is also available as a fully automated brake test stand. Unlike the StepMatic® system, the automated version requires virtually no operator intervention. Once the test programme is loaded, the machine executes every step automatically – from pressure adjustments to cycle testing and timing sequences.

This seamless automation ensures consistent, highly accurate results for every brake tested, eliminates the risk of human error and significantly reduces testing time. Operators can monitor multiple tests simultaneously, increasing productivity and workflow efficiency.

With the ability to store extensive brake part databases, the fully automated BTS NGtronic® is ideal for high-volume testing environments, offering unmatched reliability, speed and ease of use.

Product Information

Dimensions

Dimensions (L x W x H) in mm (in)

1200 (47) x 1000 (39) x 2050 (81)

Digital pressure gauges in psi

0 - 500, 0 - 5000

Screen size in inch

Accuracy in % BFSL

0.125

Pressure tolerance of the system in %

max. 2

Discharge volume of pressure line in L/min / bar (psi)

1.15 / 350 (5000)

Test connections

Two test outlets M14 x 1.5 metric thread | Two high pressure hoses NG 6, 1.2 meters

Flush connection

Transparent hose 6 mm diameter

Skydrol/ Mineral Oil-resistant Oil reservoir in L

Electrical power requirments

The KUNZ BTS NGtronic® comes with a factury set power requirement of 50/60 Hz, 400V 3-phases, 16 ampere fuse However, we will always need to know your local power requirements in order to check for compatability. In general, your local power requirements will always be available with KUNZ machines in return of extra costs.

KUNZ Brake Test Stand Comparison

KUNZ Brake Test Stand Comparison (1,13 MiB)

BTS NGtronic®-T/ -C - Brake Test Stand

Improved Health and Safety features with a protected test
cabin against hydraulic oil/ Skydrol sprays and solid parts
leaving the piston housing under pressure
Easy accessibility of the brake due to integrated turntable and mirror on the back of the cabin providing 360° access
All doors are interlocked using electrical safety switches for
maximum safety
Works with the KUNZ Wheel & Brake Shop Software
Brake test can also be printed as report or exported into an excel file for later review
Feature manual mode testing as well as the integrated StepMatic® function, allowing the operator to add simple programs and pressure build-ups/ realeases/ holds
Documentation of the complete test cycle checks the
required checkmarks

BTS NGtronic®-T/ -C AUTO - Brake Test Stand

Automatic CMM testing offers the highest level of convenience, traceability and process safety avoiding potential human error
Provides essential and unmatched step by step CMM guidance as well as digital gauges for maximum accuracy and process safety

Part Numbers

KUNZ BTS NGtronic®-T - Brake Test Stand: 222.2000
KUNZ BTS NGtronic®-T AUTO - Brake Test Stand: 222.2100
KUNZ BTS NGtronic®-C - Brake Test Stand: 222.3000
KUNZ BTS NGtronic®-C AUTO - Brake Test Stand: 222.3100

The KUNZ BTS NGtronic® and NGtronic® AUTO is also available in configurations for mineral oil.
