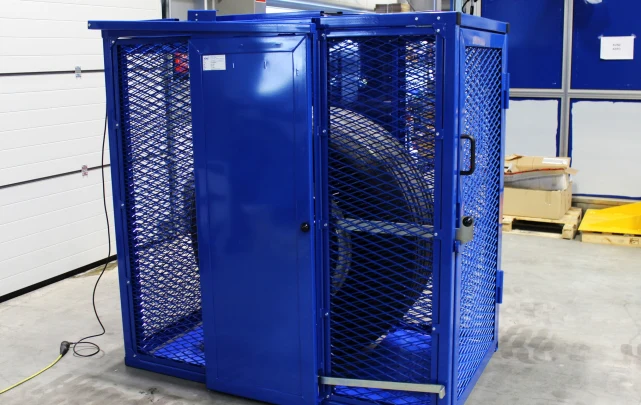

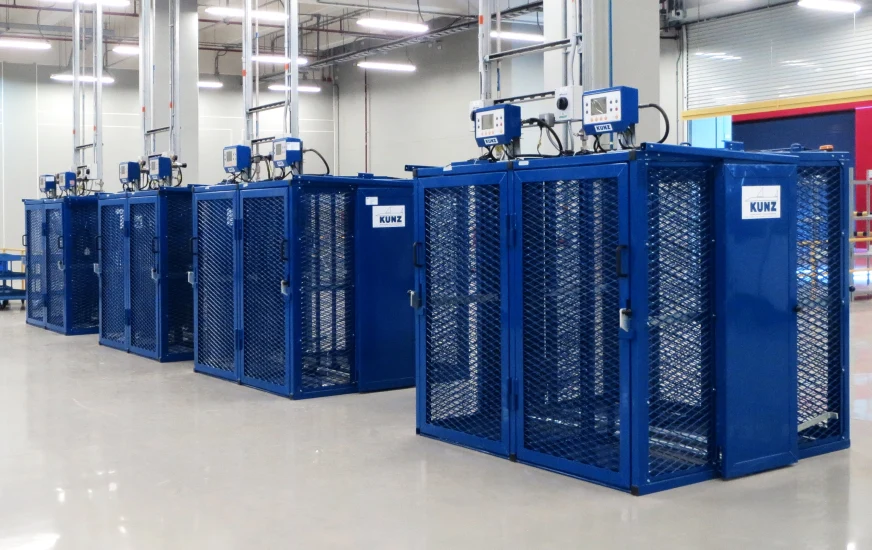

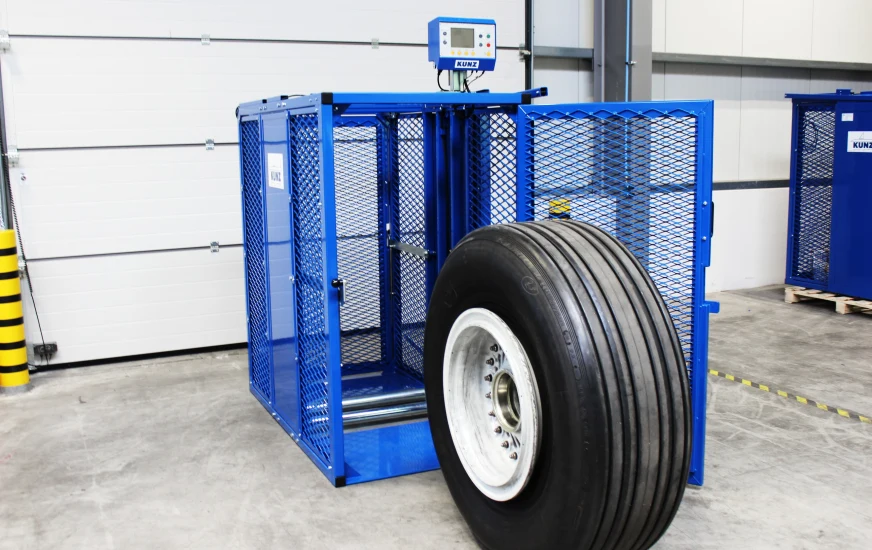

Features TTS
- Protection cages for safe inflation and deflation of aircraft tires to improve HSE in wheel shops
- Reduces shock wave from tire burst to just 5 to 10% of it initial power
- Design allows complete view of the wheel during inflation/ deflation
- Front door can be locked after placement of wheel
- Sliding doors at the side of the cage provide easy access to wheel outlets
- Wheel can be rotated on rollers to bring it into position
- Center side of the cage is reinforced by full plate frames to protect from flying nuts or bolts improving HSE
- Easy push out action by foot pump after wheel is done
- Hole at the top of the cage allows for proper tire burst force distribution
- Available in two sizes for small and large aircraft wheels
- Has LogMove compatible variants
- TWIN variants are available for inflation/ deflation of two wheels at the same time

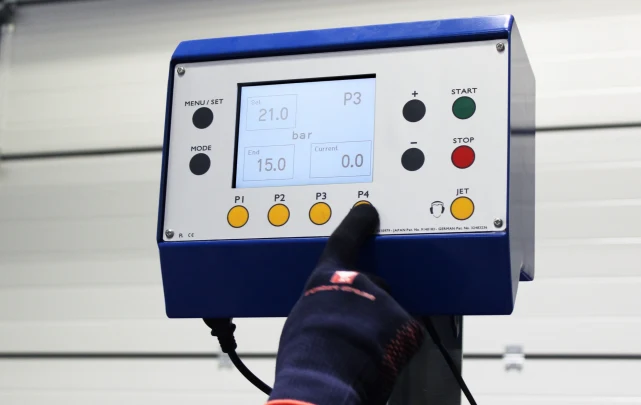

Features ATI
- Provides 4 preset buttons for easy access to most commonly used wheel pressures
- Can be operated manually by putting in the required pressure via buttons
- First overinflates and then deflates the wheel to avoid tire explosions after inflation to operational pressure
- Is capable of handling high inlet pressures by installing a pressure reducer
- ATI NGtronic® is operated via a touchscreen and can save an unlimited number of programs for different wheel P/Ns
- Can control multiple offshoot units via just one main unit
- Comes with optional equipment such as a barcode scanner or RFID cards for easy program retrieving or even a lable printer to print inflation results for leakage testing
