KUNZ WheelLift

Key Tasks

Lifting aircraft wheels to an ergonomic working height for assembly and disassembly
Enabling two-operator assembly and disassembly with full bolt and nut accessibility from both sides
Safely securing the wheel during all maintenance procedures to prevent tipping or falling
Compatible with all aircraft wheel sizes

OVERVIEW

The KUNZ WheelLift is a specialised lifting device for aircraft wheels, engineered to bring the wheel assembly up to an ergonomic working height for assembly and disassembly by two operators.

With bolts and nuts perfectly accessible from both sides of the wheel, the WheelLift ensures comfortable, efficient working conditions while securely holding the wheel in place throughout the process. This eliminates the risk of the wheel falling over and causing damage or injury.

The WheelLift supports all aircraft wheel sizes and is available in different versions to accommodate the full range of tire dimensions. Optional equipment such as the specially designed C-Hook further improves process safety by enabling secure lifting of rim halves.

Main Benefits

Bolts and nuts are perfectly accessible from both sides of the wheel – ideal for two-operator work
Lifts wheel to ergonomic working height – reduces physical strain and improves HSE conditions
Securely holds the wheel in place – eliminates the risk of tipping, falling and damage
Compatible with all aircraft wheel sizes; available in multiple versions
Optional C-Hook for safe lifting of rim halves
Improves overall workflow speed and consistency during assembly and disassembly

Smarter Handling for Safe Assembly & Disassembly

The KUNZ WheelLift is a dedicated solution for the safe, efficient and ergonomic handling of aircraft wheels during assembly and disassembly. Developed for demanding aviation maintenance environments, it reduces manual effort while ensuring precise and controlled positioning of heavy wheel assemblies. This significantly improves both safety and process reliability throughout every stage of operation.

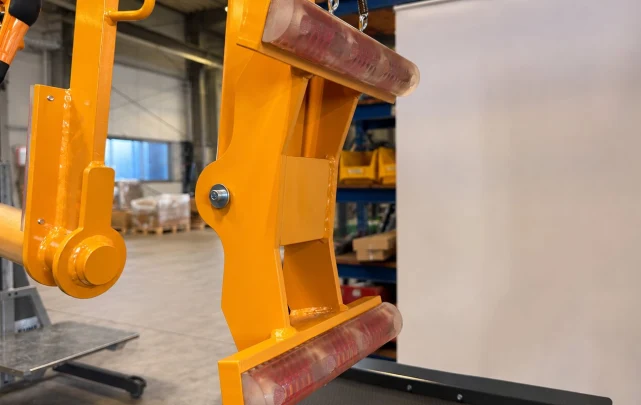

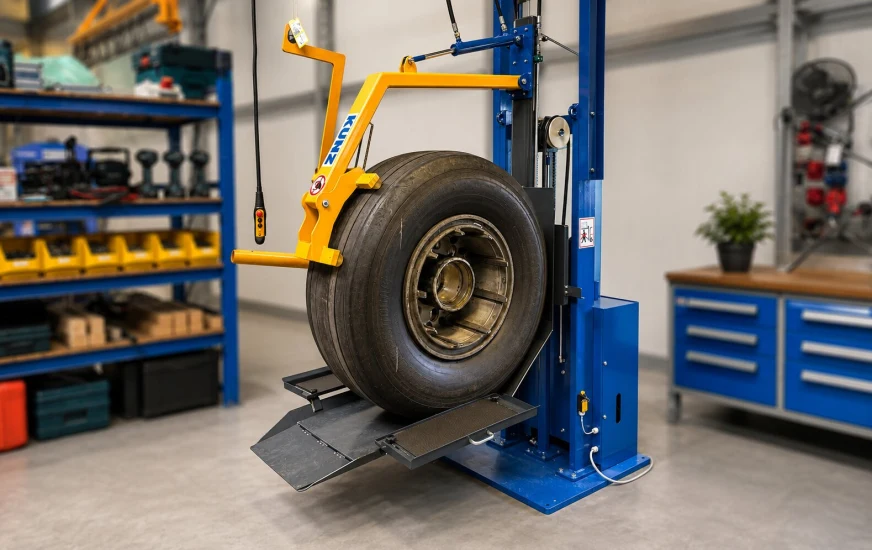

KUNZ WheelLift | Aircraft Wheel Assembly / Disassembly

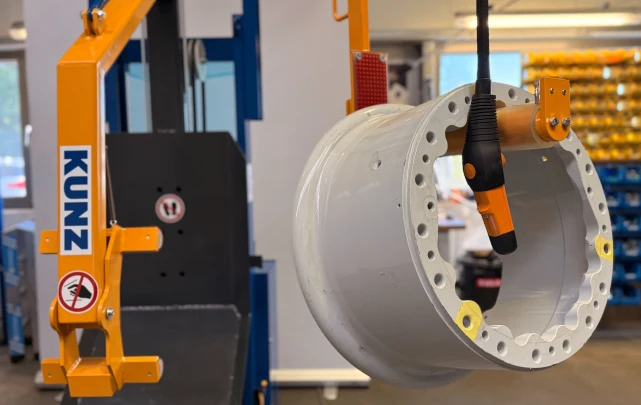

KUNZ WheelLift C-Hooks and ergonomic working height | Aircraft Wheel Assembly / Disassembly

Ergonomic, Stable and Ready for Every Wheel Size

Whether lifting, aligning or supporting aircraft wheels, the KUNZ WheelLift enables smooth and accurate handling with minimal physical strain for both operators. Maintenance tasks become faster, safer and more consistent as a result.

By integrating the KUNZ WheelLift into daily workshop operations, users benefit from optimized workflows, a reduced risk of wheel damage and a substantial improvement in overall efficiency during assembly and disassembly procedures.

Optional C-Hook Accessory:

The specially designed C-Hook for the KUNZ WheelLift further enhances process safety by enabling the secure lifting of rim halves from and onto the tire – an important step in wheel assembly and disassembly that is often performed manually without the correct tooling.

Product Information

Dimensions

Dimensions (L x W x H) in mm (in)

1.900 (75) x 800 (32) x 2.000 (79)

Extended height in mm (in)

2.700 (108)

Weight in kg (lb)

735 (1.620)

Min. rim hub diameter in mm (in)

145 (5.7)

Max. tire weight in kg (lb)

300 (660)

Electrical power requirments

The KUNZ WheelLift comes with a factury set power requirement of 50/60 Hz, 400V 3-phases, 16 ampere fuse However, we will always need to know your local power requirements in order to check for compatability. In general, your local power requirements will always be available with KUNZ machines in return of extra costs.

Features

Lifting device for aircraft wheels to bring them up to an ergonomic working height
Bolts and Nuts are perfectly reachable from both sides of the wheel to be torqued or loosened by two operators
Safely secures the wheel whilst work is being performed and therefore improving Health and
Safety regulations
Prevents the risk of the wheel falling over
Optional equipment like the specially designed C-Hook further improve process safety by securely lifting rim halves from and to the tire
WheelLift supports various tire sizes and even comes in different versions to support any tires available

Part Numbers

KUNZ WheelLift: 158.4000
KUNZ WheelLift - Overhead Beam with hoisting device: 158.5000
KUNZ WheelLift - C-Hook rim attachment tool: 158.5100
