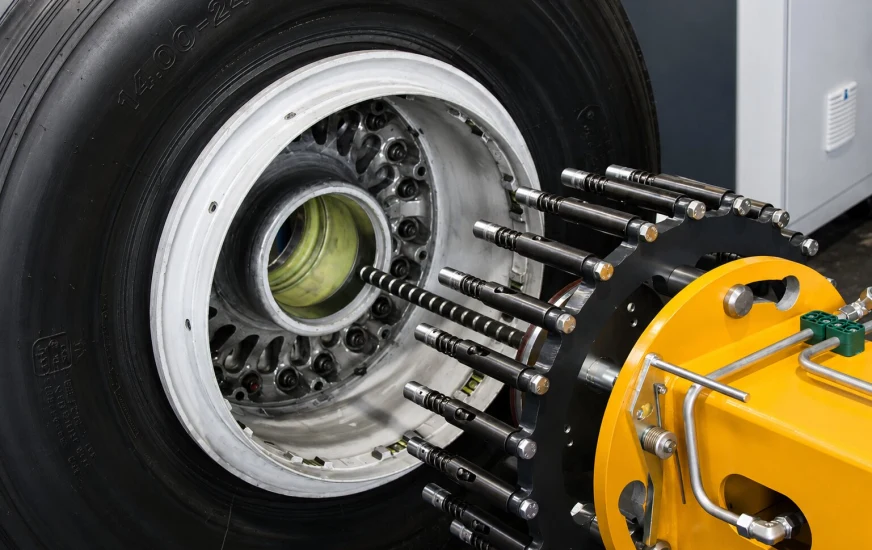

KUNZ UAS clamping of wheel with wheel adapter
KUNZ UAS paired with KUNZ UTS NGtronic
KUNZ UAS paired with KUNZ UTT

KUNZ UAS - Universal Assembly and Disassembly Stand

Key Tasks

Single-operator assembly and disassembly of aircraft wheel and tire assemblies
Secure hydraulic clamping and positioning of aircraft wheels for all process steps
Ergonomic platform for CMM-compliant torque application via KUNZ UTS NGtronic or KUNZ UTT
Hydraulic wheel handling, rotation and lifting to prevent operator injuries

OVERVIEW

The KUNZ UAS Universal Assembly and Disassembly Stand has been designed around a single principle: combining safety and efficiency in aircraft wheel maintenance.

The heavy-duty hydraulic clamping system secures the wheel firmly on the stand, providing a stable and ergonomic platform for all assembly and disassembly tasks – including torque application via the KUNZ UTS NGtronic or KUNZ UTT. By enabling single-operator handling of tasks that traditionally required two or more personnel, the UAS significantly reduces labour costs and improves workshop efficiency.

Wheel handling, rotation and lifting are performed hydraulically, eliminating manual strain and reducing the risk of operator injury. Wheel halves can be lifted via an included chain hoist for safe storage or assembly.

Main Benefits

Enables safe single-operator assembly and disassembly – saves on personnel costs
Heavy-duty hydraulic clamping for secure, stable wheel positioning
Ergonomic working height reduces physical strain and improves HSE conditions
Hydraulic wheel rotation and lifting prevent manual handling injuries
Seamlessly integrates with KUNZ UTS NGtronic and KUNZ UTT for CMM-compliant torquing
Integrated chain hoist for safe lifting and storage of wheel halves
Compatible with KUNZ wheel adapters for third-party stands (incl. Bauer)

Do More with Less – One Operator, Full Control

The KUNZ UAS is engineered to streamline both assembly and disassembly with maximum efficiency. Designed for single-operator use, it enables one technician to safely and easily handle tasks that would traditionally require multiple personnel.

Its intuitive design and precise hydraulic control ensure smooth, secure operations at every stage, reducing complexity and minimizing the risk of errors. By enabling single-operator assembly and disassembly, the KUNZ UAS not only optimizes manpower but also improves workflow efficiency and reduces operational costs.

KUNZ UAS single operator operation | Aircraft Wheel Assembly / Disassembly

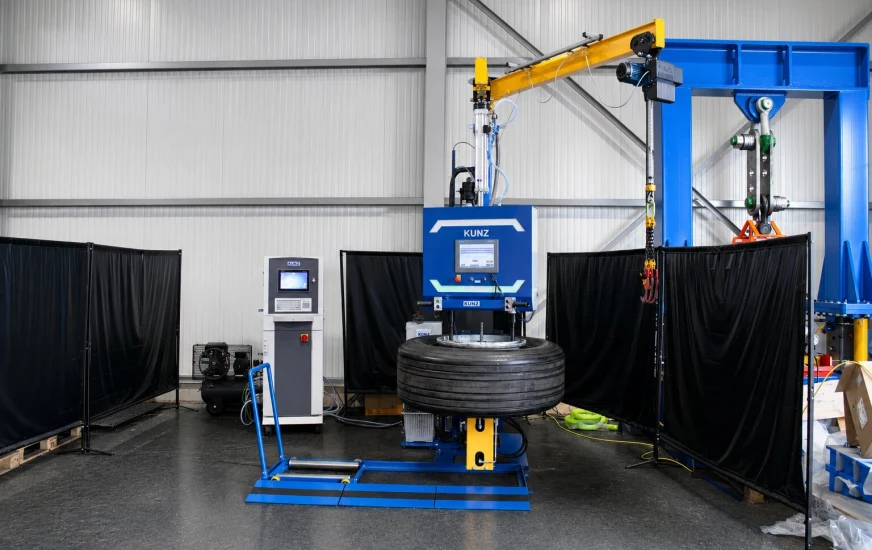

KUNZ UAS + UTS NGtronic Workstation | Aircraft Wheel Assembly / Disassembly

The Complete KUNZ Assembly & Disassembly Workstation

Manual torquing of aircraft wheel bolts and nuts is no longer state of the art – it is time consuming, physically demanding and prone to inconsistencies.

KUNZ torquing solutions redefine this process by delivering controlled, repeatable and highly precise torque with full data logging. Fully integrated with the KUNZ UAS, they create a seamless workflow for both assembly and disassembly operations.

This combination forms a new state-of-the-art workstation that unites ergonomic handling, process reliability and powerful torque technology in a single system – resulting in higher efficiency, improved safety and consistently accurate maintenance outcomes.

Shared Power Pack Option:

The KUNZ UAS is capable of sharing its power pack together with the KUNZ SBB. This way you will only need one power pack for both of these units which reduces costs of investment.
Operation is only possible on either one unit at the same time.

Product Information

Dimensions

Dimensions without overhead beam (L x W x H) in mm (in)

2.420 (95.3) x 2.185 (86) x 1.702 (67)

Dimensions with overhead beam (L x W x H) in mm (in)

2.505 (98.6) x 2.185 (86) x 3.446 (135.7)

Weight in kg (lb)

850 (1.874)

Adjustable working height in mm (in)

750 (29.5) - 1.300 (51.2)

Capacity of overhead beam in kg (lb)

125 (275.6)

Electrical power requirments

The KUNZ UAS comes with a factury set power requirement of 50/60 Hz, 400V 3-phases, 16 ampere fuse However, we will always need to know your local power requirements in order to check for compatability. In general, your local power requirements will always be available with KUNZ machines in return of extra costs.

UAS - Universal Assembly /
Disassembly Stand

Heavy-duty wheel assembly stand with hydraulic clamping system
Enables single operator assembly and disassembly, saving on personnel costs

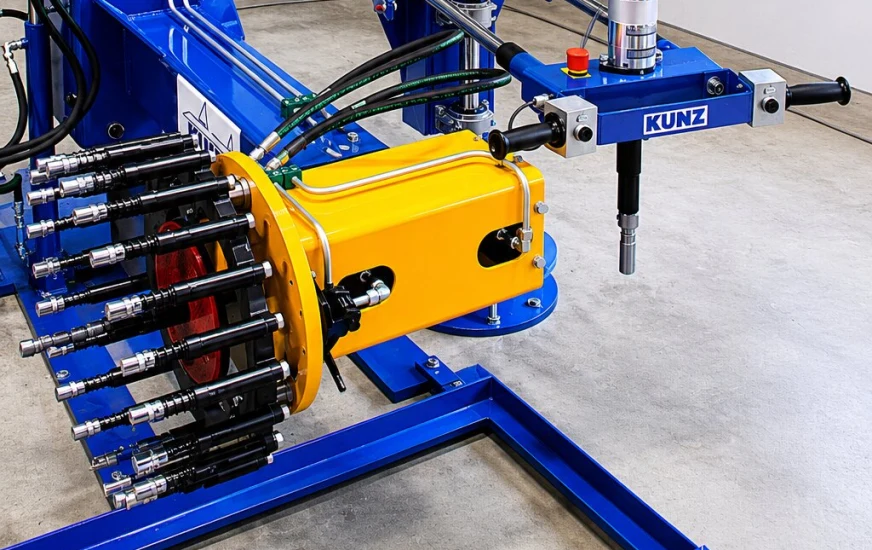

Clamping plates on one side and wheel adapters on the other will fix the wheel onto the stand for proper torquing
Is compatible with KUNZ UTS NG and KUNZ UTT for applying torque
Provides ergonomic platform for improived Health and Safety conditions
Reduces manual handling and improves compliance with CMM torque/ assembly procedures
Wheel handling, rotating and lifting is done hydraulically to prevent injuries

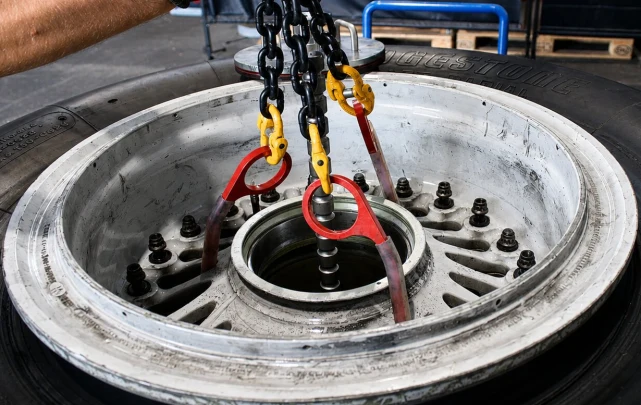

Wheel halves can be lifted via an included chain hoist to safely store them away or bring them in for assembly

Part Numbers

KUNZ UAS - Universal Assembly and Disassembly Stand: 131.4000
KUNZ UAS - Overhead Beam with hoisting device: 130.6650
KUNZ UAS - Dual Overhead Beam: 130.6750
