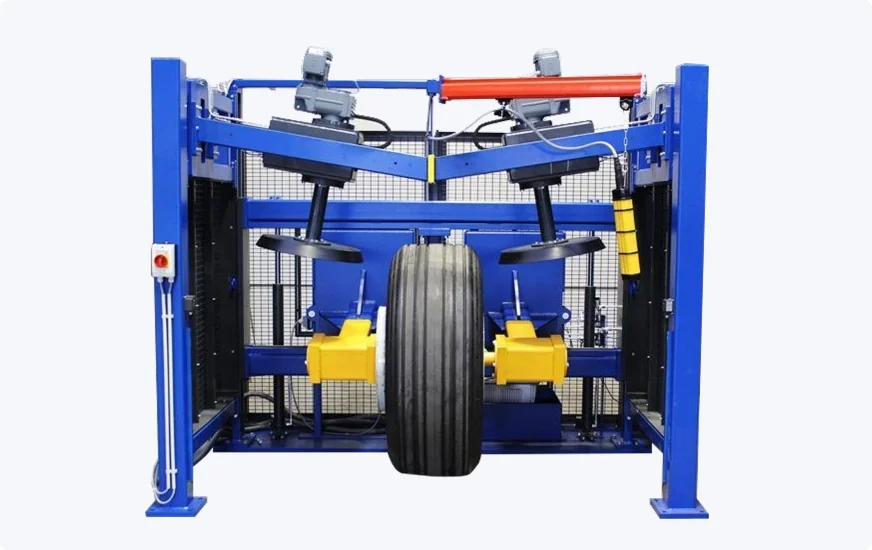

KUNZ DUBB Dynamic
Universal BeadBreaker

Key Tasks

Breaking the bead on modern radial and bias aircraft tires (e.g. A320, B737, B787, B777, etc.)
Safe tire removal without damaging wheels or bearing cups
Supporting fully and semi-automated bead breaking for efficient workflows

OVERVIEW

Headline

KUNZ DUBB Dynamic Universal BeadBreaker has been specially designed for the latest generation of radial tires, such as Michelin NZG and Bridgestone RRR tires for aircraft such as A320, A350, B737, B787, B777, B747 ERJ 190 etc. as well as bias aircraft tires.

Main Benefits

Compatible with the latest aircraft tire technologies (Michelin NZG, Bridgestone RRR)
Gentle, damage-free bead breaking process
Faster, optimized operation with NGtronic AUTO version
Reduced risk of operator error
Reliable, efficient and safe maintenance process

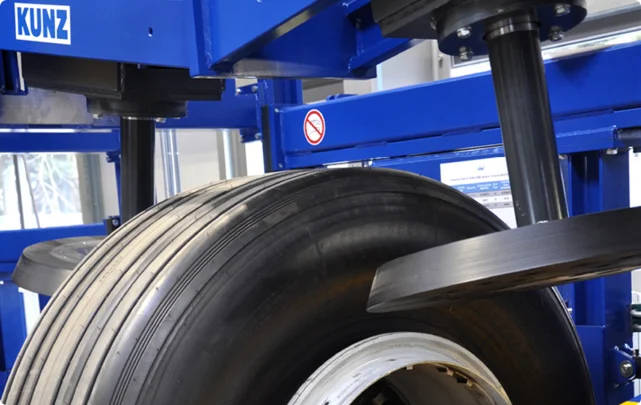

Safe tire removal

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Donec quam felis, ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim.

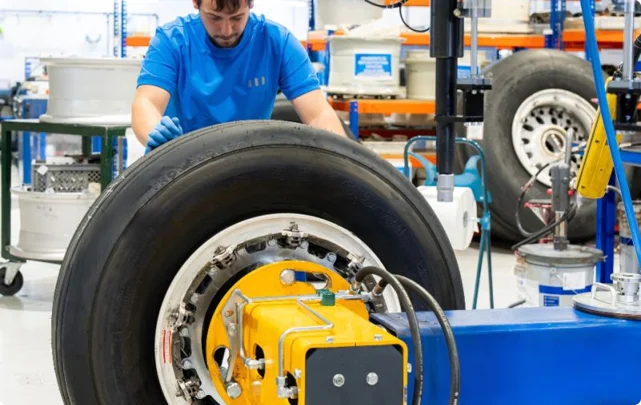

Reduced risk of operator error

The KUNZ DUBB is also available with a fully '
and semi-automated bead breaking process:

KUNZ DUBB NGtronic® AUTO (fully-automated)

The KUNZ UBB Universal BeadBreaker is specially designed for bead breaking of bias and radial aircraft wheels with a wheel half diameter of 406 mm (16 in) up to 762 mm (30 in).

UNZ DUBB NGtronic® (semi-automated)

The KUNZ UBB Universal BeadBreaker is specially designed for bead breaking of bias and radial aircraft wheels with a wheel half diameter of 406 mm (16 in) up to 762 mm (30 in).

Product Information

Dimensions

Standard/automated version (L x W x H) in mm (in)

2796 (110) x 2802 (110.4) x 2447 (96.4)

Weight approx. in kg (lb)

3200 (7055)

Max. tire diameter in mm (in)

1702 (67)

Max. rim diameter in mm (in)

762 (30)

Min. tire diameter in mm (in)

534 (21)

Min. rim diameter in mm (in)

330 (13)

Max. tire width in mm (in)

711 (28)

Max. tire weight in kg (lb)

250 (551)

Hydraulic oil tank volume in l

Electric power requirements

Standard/automated version (L x W x H) in mm (in)

2796 (110) x 2802 (110.4) x 2447 (96.4)

Weight approx. in kg (lb)

3200 (7055)

Max. tire diameter in mm (in)

1702 (67)

Max. rim diameter in mm (in)

762 (30)

Min. tire diameter in mm (in)

534 (21)

Min. rim diameter in mm (in)

330 (13)

Max. tire width in mm (in)

711 (28)

Max. tire weight in kg (lb)

250 (551)

Hydraulic oil tank volume in l

Label

Value

Label

Value
