KUNZ LogMove-E
KUNZ LogMove-M

KUNZ LogMove

Key Tasks

Safe handling and in-shop movement of aircraft wheels and assemblies
Prevents wheels from tilting during transport in the workshop
Allows one-handed wheel handling for improved operator safety and efficiency
Available in manual (-M) and electric (-E) clamping versions

Overview

The KUNZ LogMove is an ergonomic and practical solution for the safe in-shop transport and handling of aircraft wheels. Designed to prevent wheels from tilting during movement, the LogMove allows the operator to handle and manoeuvre a wheel with just one hand, significantly improving safety and efficiency in the workshop.

Two versions are available: the LogMove -M, where wheel clamping is performed manually via a hand pump, and the LogMove -E, where clamping is performed at the push of a button for maximum convenience.

Main Benefits

Prevents wheel tilting during in-shop transport – significantly improves workshop safety
One-handed wheel handling frees the operator for other tasks
Available in manual (-M) and push-button electric (-E) clamping versions
Compatible with KUNZ DUBB and KUNZ TTS for streamlined workflow integration
Reduces risk of wheel and tire damage during handling and transport
Compact and manoeuvrable – suitable for all standard workshop layouts

Safer In-Shop Wheel Transport – One Hand, Full Control

Moving aircraft wheels between workstations in a busy MRO shop is a task that is easily underestimated. A wheel that tilts or falls during transport can cause significant damage to the wheel itself, the tire or the surrounding equipment – and poses a real risk of operator injury.

The KUNZ LogMove eliminates this risk. By securely clamping the wheel and allowing it to be moved with a single hand, it turns a potentially hazardous task into a safe, controlled and efficient part of the workshop workflow.

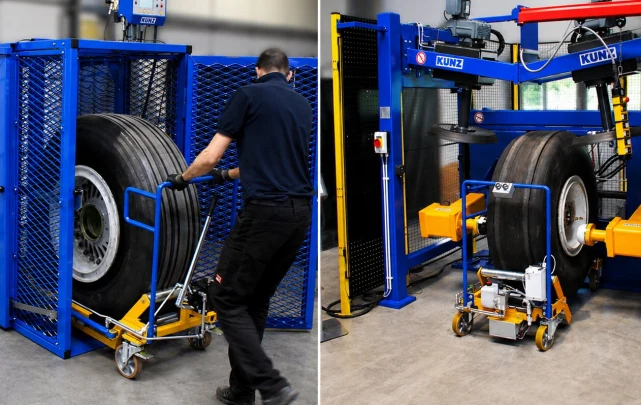

KUNZ LogMove compatible with KUNZ TTS and KUNZ DUBB | In Shop Aircraft Wheel Transportation

Picture showcases old DUBB model

Integrated Workflow with KUNZ DUBB and TTS

The KUNZ LogMove is designed to complement the KUNZ DUBB - Dynamic Universal BeadBreaker and the KUNZ TTS - Tire Test System.

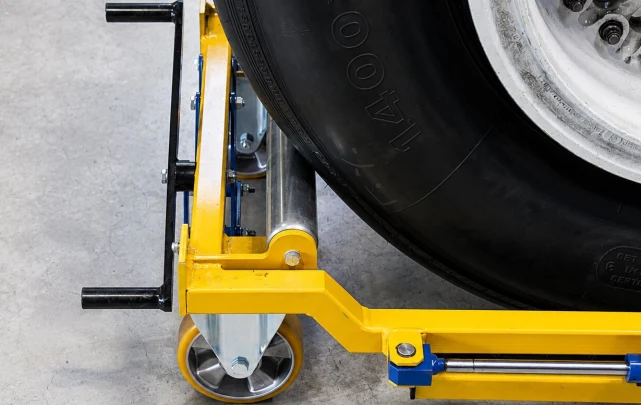

Two Clamping Versions:

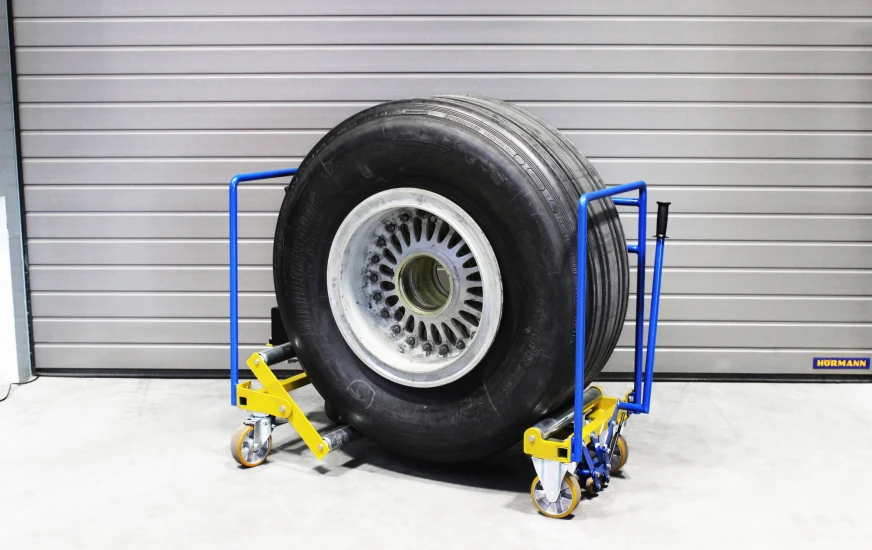

LogMove -M: Wheel clamping performed manually via hand pump.

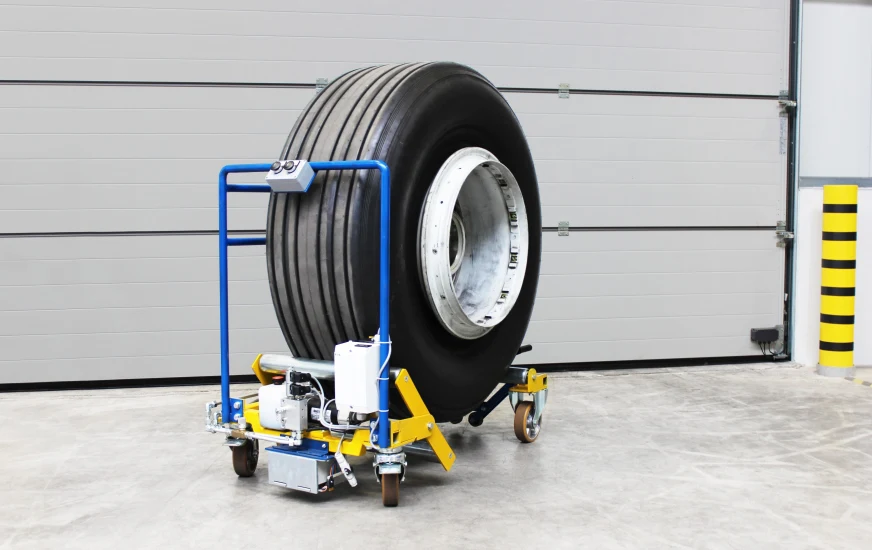

LogMove -E: Wheel clamping performed at the push of a button for maximum convenience and speed.

Both versions are fully compatible with the KUNZ DUBB and KUNZ TTS.

Product Information

Dimensions

Dimensions (L x W x H) in mm (in)

1.500 (59) x 750 (29.5) x 1.080 (42.5)

Extended dimensions (L x W x H) in mm (in)

2.000 (79) x 750 (29.5) x 1.080 (42.5)

Weight in kg (lb)

76 (168)

Max. carrying capacity in kg (lb)

250 (551)

Electrical power requirments

The KUNZ LogMove does not require any electricity.

Features

Prevents wheels from tilting
Allows handling of a wheel with one hand
Can be used in combination with the KUNZ DUBB and TTS
Improved safety during in-shop transport
Clamping of the wheel is performed manual via handpump (-M)
Clamping of the wheel is performed via push of a button (-E)

Part Numbers

KUNZ LogMove-M: 113.5000
KUNZ LogMove-E: 113.5100

Product Updates

No recent product updates.

Do you need any further documents?

We are happy to help you.
