KUNZ BLT
KUNZ BLT-S

KUNZ BLT - Brake Lifting Tool

Key Tasks

Safe lifting and in-shop positioning of aircraft brake assemblies
Available in two sizes to cover all commercially available aircraft brakes
No metal-to-metal contact – protects precision brake components from damage
Automatically grips the brake hub when lift is applied – no manual adjustment required

Overview

The KUNZ BLT Brake Lifting Tool is a robust, compact and purpose-built device for the safe lifting and positioning of aircraft brake assemblies during in-shop maintenance operations.

Constructed from galvanised, high-strength materials with protective coatings, the BLT is built for long-term use in demanding MRO environments. It is compatible with all standard hoisting devices and lifting systems, and automatically grips the brake hub when lift is applied – eliminating the need for manual adjustments during the lifting process.

No metal-to-metal contact occurs between the BLT and the brake assembly throughout the entire operation, protecting precision-engineered brake components from damage. Two sizes are available to cover all commercially available aircraft brakes, with a brake hub diameter range of 133–220 mm (5.1–8.7 in) and a maximum carrying capacity of 200 kg (440 lb).

Main Benefits

Automatically grips the brake hub under load – no manual adjustment needed
No metal-to-metal contact – protects precision brake components throughout the lift
Available in two sizes to cover all commercially available aircraft brakes
Compatible with standard hoisting devices and lifting systems
Galvanised, high-strength construction with protective coatings for long service life
Minimises physical strain on technicians when handling heavy brake assemblies
Maximum carrying capacity of 200 kg (440 lb); hub diameter range 133–220 mm (5.1–8.7 in)

Simple, Safe and Damage-Free Brake Lifting

Lifting aircraft brake assemblies manually is physically demanding and carries a real risk of damage to the brake's precision-engineered components. The KUNZ BLT eliminates both risks.

Its automatic grip mechanism locks onto the brake hub as soon as lift is applied, ensuring that the brake is held securely throughout the entire lifting and positioning process. The absence of metal-to-metal contact between the tool and the brake means that sensitive surfaces are fully protected at all times.

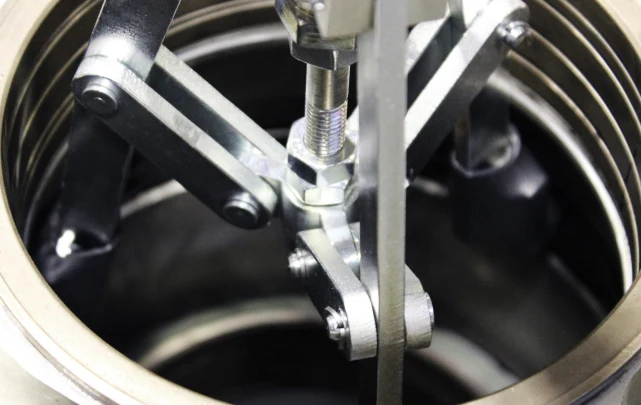

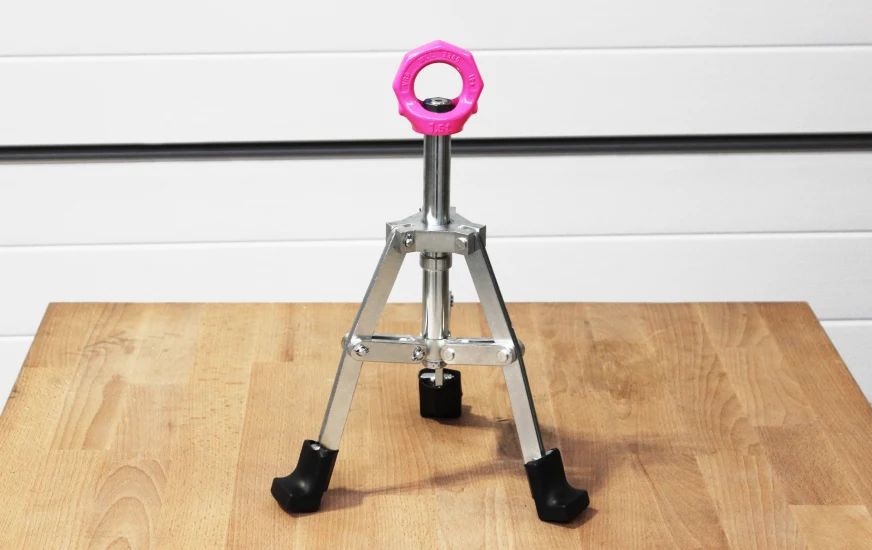

KUNZ BLT | Aircraft Brake Lifting transportation

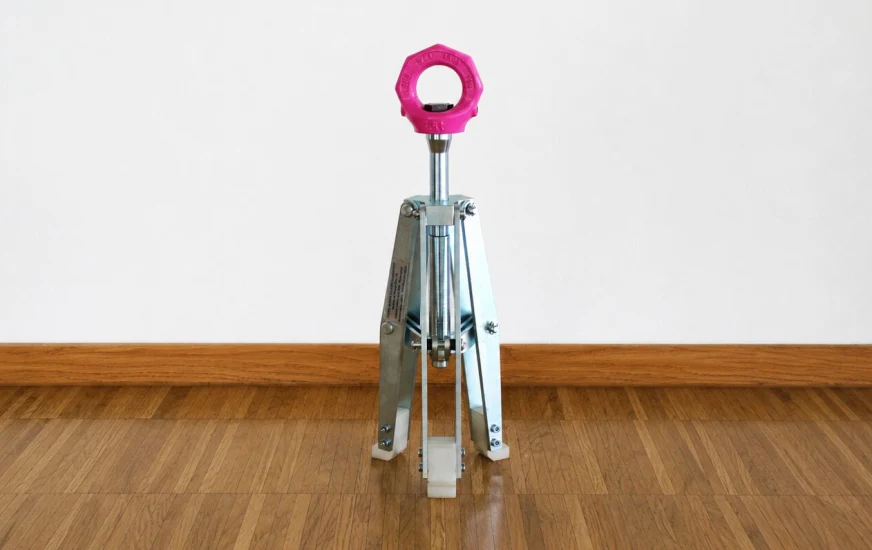

KUNZ BLT-S | Aircraft Brake Lifting transportation

Two Sizes. Complete Coverage

The KUNZ BLT is available in two sizes, providing coverage for all commercially available aircraft brakes from regional jets to wide-body aircraft. With a brake hub diameter range of 133–220 mm (5.1–8.7 in) and a maximum carrying capacity of 200 kg (440 lb), the BLT handles the full spectrum of commercial aircraft brake assemblies.

Its compact design, low weight of just 1.4 kg (3.1 lb) and compatibility with standard hoisting equipment make the BLT a practical and indispensable addition to any aircraft brake maintenance workshop.

Product Information

Dimensions

Max. length in mm (in)

335 (13.2)

Weight in kg (Ib)

1,4 (3.1)

Rim hub diameter range in mm (in)

133 - 220 (5.1 - 8.7)

Max. carrying capacity in kg (Ib)

200 (440)

Features

Robust and compact device for safe aircraft brake lifting
Two sizes available to cover all commercially available aircraft brakes
No metal-to-metal contact
A simple and safe solution for in-shop brake logistics

Part Numbers

KUNZ BLT - Brake Lifting Tool: 228.0000
KUNZ BLT-S - Brake Lifting Tool: 228.1000
